Workflows

Turn a model into a repeatable process: stages of widgets, who works each one, and where an approver must sign off.

Where: Workflows

A workflow is a recipe your team follows on a model: a sequence of stages, each with its own widgets, and gates that decide when the next stage opens. Author it once, publish it, and run it every week or month. Running one is on Workflow runs.

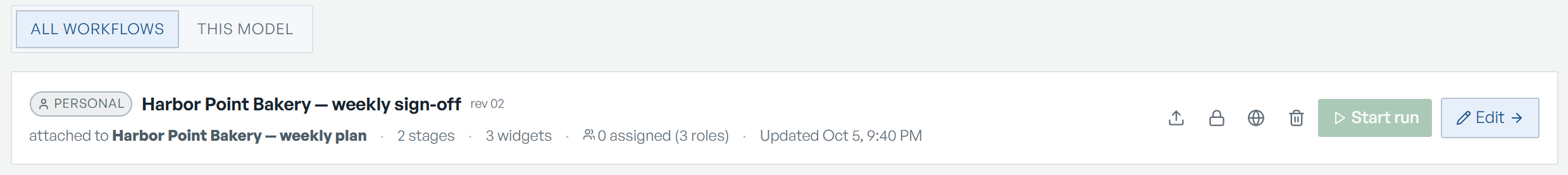

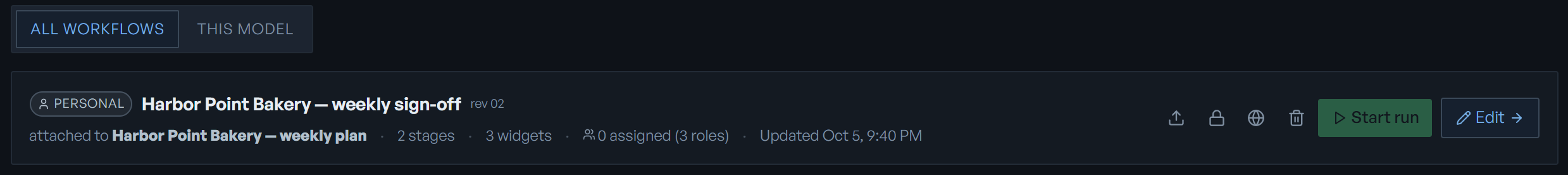

The Workflows library with the Harbor Point Bakery weekly sign-off row: the PERSONAL chip, rev 02, the attached model, stage, widget and assignment counts, the icon actions, Start run (disabled on a draft) and Edit

Other ways in: Ctrl/⌘+K → Go to Workflows; the Workflows card on the model home; MY WORKFLOWS on Home; See all N workflows → on Scenarios. Picking the Operator persona at first run lands you here.

Find a workflow

ALL WORKFLOWS / THIS MODEL switches between every workflow you can see and the open model's. It starts on THIS MODEL when you came from a model.

On a row	Means
ORG / PERSONAL	The workflow's tier.
Published	Ready to run. The row border turns green.
Locked by you / Locked by …	Someone holds the lock; the reason is in the tooltip. The border turns amber.
rev NN	The revision.
attached to {model}	The model it runs on.
N stages · N widgets · N assigned (N roles) · Updated …	Its size, and how many people are Contributors or Approvers.

Then the row's actions: Start run (see Workflow runs), Edit, and the icons in Publish and share.

With nothing to show, the list says No workflows for this model yet. or No workflows authored yet., with Author your first workflow.

Create a workflow

Click New workflow.
Pick the Attached model, give it a Name and, if you like, a Description (optional).
Click Create + edit. The editor opens.

You need to be able to edit the model. A new workflow starts with one stage, Review, on Manual advance, and three roles: Contributor, Approver and Viewer.

Author stages

The editor has three columns: the workflow and its stages, the selected stage, and the Widget palette. ← Workflows goes back.

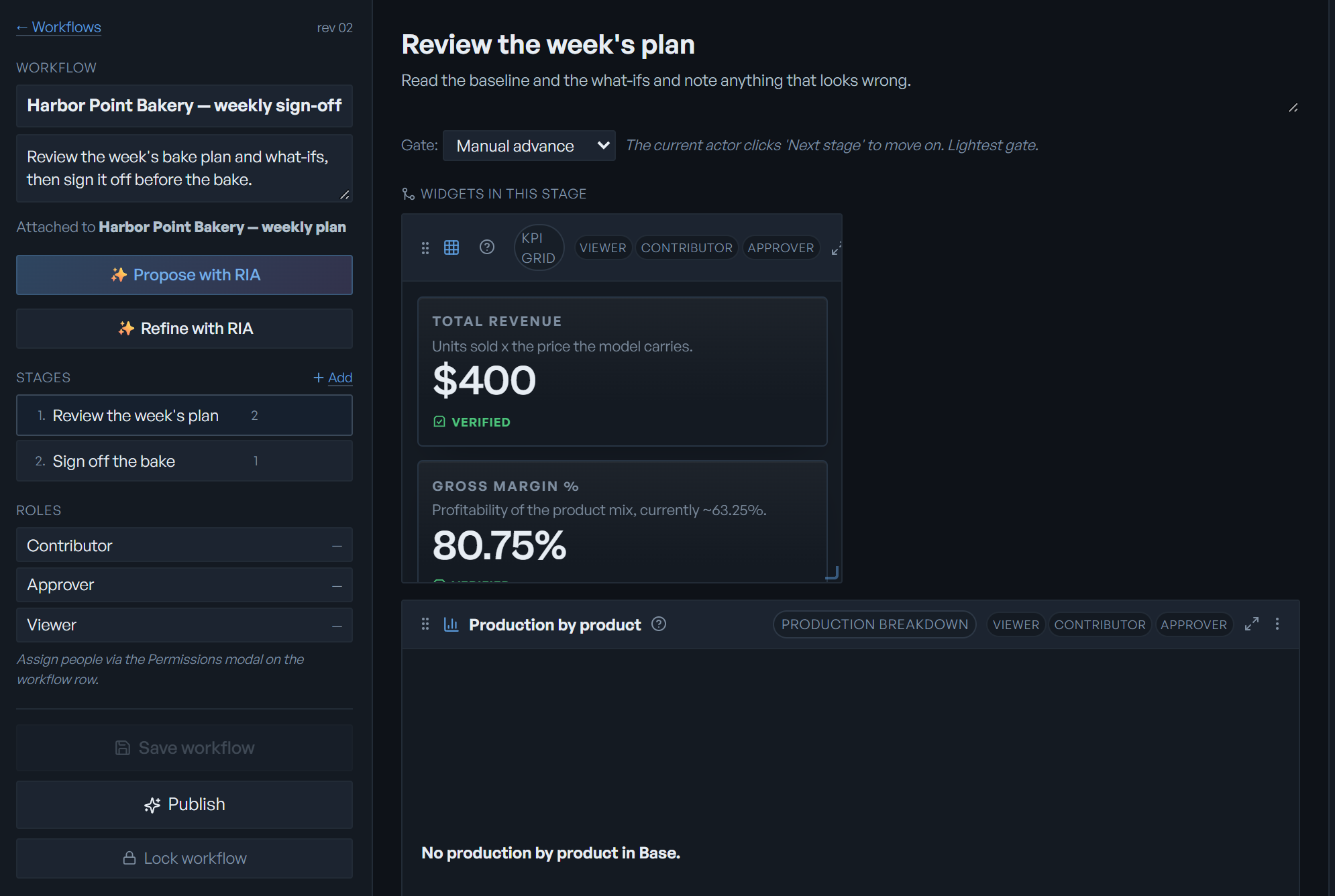

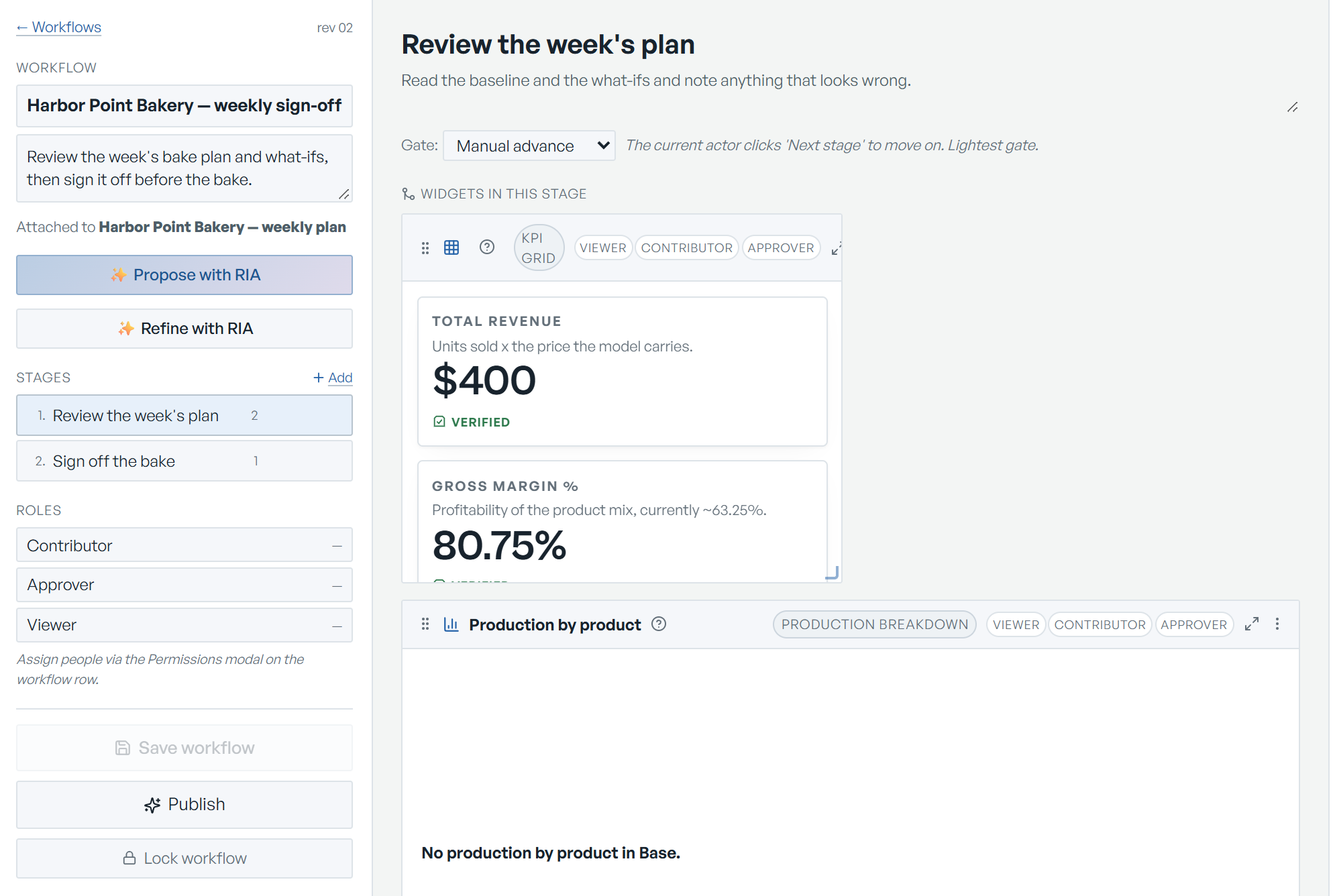

The workflow editor for Harbor Point Bakery — weekly sign-off: name, description, Propose and Refine with RIA, the Stages and Roles lists, Save workflow, Publish and Lock workflow, and the selected stage with its Gate select and widgets

Name the workflow and say what it does in one sentence.
Under Stages, click Add. Each new stage is "Stage N" with Manual advance. Hover a stage for Move up, Move down and Remove stage.
Click a stage, then give it a name, a one-sentence description, and a Gate.
Add widgets from the palette; see below.
Click Save workflow.

Choose a gate

Gate	Next stage opens when
Manual advance	Whoever is working the stage clicks Advance ›. The lightest gate.
Approval required	Someone with the Approver role clicks Approve this stage. Until then the stage can't advance.

Add widgets to a stage

Click a widget in the Widget palette to add it to the selected stage. Everyone in the run sees it. Under Widgets in this stage, drag a tile by the grip in its header to move it and by its corner to resize it. Its Widget actions (⋮) menu has Move up, Move down and Remove widget. Tiles show a live preview from the model, with the same ?, Full screen and error states as on a workspace. What each widget shows is on Widgets.

With no stage selected, the middle column says Add a stage on the left to start composing.

See the roles

Roles lists each role and up to three of its people. It's read-only: roles are set when you accept a RIA proposal (Draft a workflow with RIA).

Save

Save workflow is enabled once you've changed something. If you can't edit the workflow or it's locked, your changes aren't kept.

Draft a workflow with RIA

✨ Propose with RIA builds a stage structure for the model and its roles. Pick a Cadence:

Cadence	Stages
Weekly cycle	Review demand → Plan → Sign-off → Distribute. Approval on Sign-off.
Monthly cycle	Review actuals → Demand → Plan → Sign-off → Distribute. Approval on Sign-off.
Ad-hoc / triggered	Three stages for a quick triage. Approval on Plan + decide.

Role assignment shows who holds each role now. Click Generate proposal to see Why these stages, the Proposed team and Proposed stages (N) with their widgets and gate. Under Assigned to, pick who works each stage. Re-propose tries again.

Accept proposal → puts the stages in the editor, unsaved, so you can change them before Save workflow. It also sets the workflow's Contributors, Approvers and Viewers to the proposed team straight away; Owners stay.

✨ Refine with RIA changes the stages you have. Say What should RIA change?, for example Add a data quality stage before Sign-off, and click Refine. What RIA changed shows the Revised stages (N). Apply edit → loads them the same way, or Try another edit. Runs already in progress keep working.

A workflow can be run once it's published.

Control	Where	What it does
Publish workflow / Publish	Library row / editor	Makes the workflow runnable. In the editor, with unsaved changes, it asks to Save and publish. Needs at least one stage. Later edits show Re-publish.
Lock workflow	Library row / editor	Stops edits until it's unlocked. The prompt asks for an optional reason: Lock saves it, Cancel locks without one. While locked, every edit control in the editor is disabled, even for you.
Unlock / Force-release	Library row / editor	Releases the lock. On the library row, force-releasing someone else's lock asks first: "The holder loses the seat without warning." In the editor, Unlock releases it without asking.
Globe	Library row	Switches the tier between organizational and personal, after `Switch tier to organizational?`.
Delete	Library row	Deletes the workflow after `Delete workflow "{name}"?`. Runs already started stay, but open on "This run's workflow definition is no longer available."

Action	Who
Create, edit, draft with RIA	Anyone who can edit the model.
Publish, change tier	The workflow's owner, its Promoters, and Org Admins. The tier globe shows only for the Org Admin and Promoter roles.
Lock, delete	The owner and Org Admins.

Publish, Lock and the tier globe are disabled while the workflow is locked; Start run and Edit stay available. Deleting a model deletes its workflows and their runs.

Limits

A workflow runs on one model.
Roles change only by accepting a RIA proposal or edit.
