River Logiceode docs

Review Queue

Check, keep or throw out what eode learned from your models' builds and solves before it becomes shared knowledge.

Owner of the source model, or Org Admin, to act

Where: Review Queue

As your models are built and solved, eode notices patterns that might help future builds. Each one waits here as a candidate until someone checks it. The queue is not where model approvals happen; those are in workflow runs.

The Review Queue sits at the foot of the rail. Ctrl/⌘+K and Go to Review Queue also gets you there, and RIA can take you there from the console.

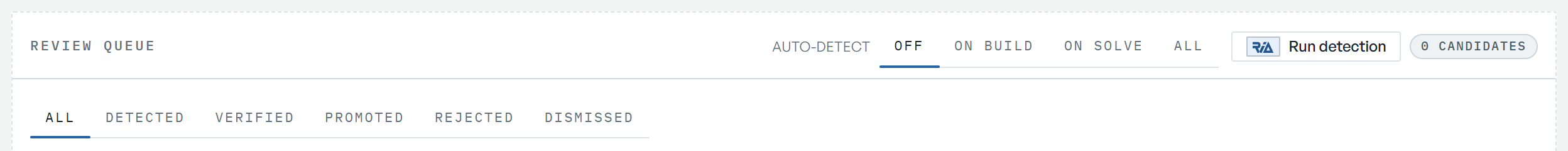

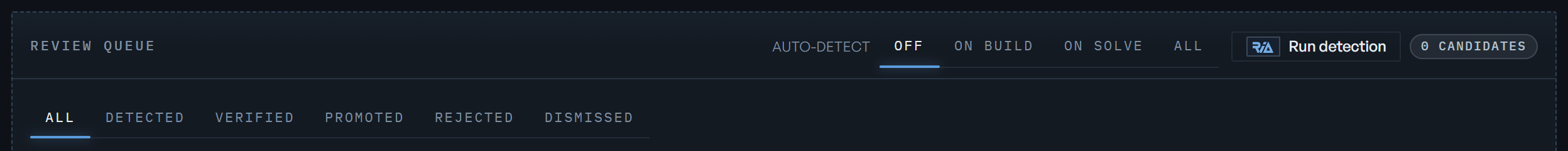

See what's queued

The header counts <n> candidates. You see the candidates learned from models you own; an org admin sees all of them.

Filter by status: All, Detected, Verified, Promoted, Rejected, Dismissed, each with a count. All leaves out dismissed and rejected candidates. Rejected includes ones the check itself turned down.

Each row has the candidate's title and summary, then badges: the learning round it came from, how deep a review it needs (three levels, the deepest an expert gate), what kind of finding it is, its status, and MODEL DELETED when its source model is gone. A line under the badges counts how often it was seen, in how many models, and how many places it would apply. Once checked, a note says what the check found.

Check a candidate

  1. Click Verify. eode re-solves a test set of models with the candidate applied. This takes a while.
  2. Read the note: verified: with what it found, or rejected: with why.
  3. Decide:
ButtonDoes
PromoteMakes a verified candidate shared knowledge for future builds. Needs an org admin, at every review level.
RejectReject for good — a future detect won't re-surface it. Reinstate to undo.
DismissRemove from queue. A future detect with the same finding will mint a fresh candidate.
ReinstatePut this candidate back in the queue at 'detected' so it can be reviewed again.
DeleteDelete this candidate permanently. No confirmation.

Everyone with a verified row sees Promote; for anyone who isn't an org admin it's refused with promoting a candidate into shared knowledge requires an org-admin approver. Acting on a candidate whose model you don't own is refused with only the owner of the candidate's source model (or an org admin) may curate it.

Find candidates now

Run detection looks through every model's solves for new candidates straight away. You get back the ones you're allowed to see.

Auto-detect decides whether eode looks on its own: Off, On build (after a model build), On solve (after a scenario solve) or All. It's one setting for the whole organization, so only an org admin can change it. Everyone else sees the current value, with Auto-detect is an org-wide setting; only an org admin can change it.

Prune <n> orphans appears when candidates are left over from deleted models (Delete candidates whose source model has been removed.). An orphan has no owner, so in practice only an org admin can prune.

When the list is empty or won't load

You seeMeans
Loading candidates…Still loading.
Couldn't load candidates. with the reason and RetryThe list didn't arrive. Click Retry.
No candidates here.Nothing for you yet. Click Run detection.
